HULKNPE Product Line

Two kits. Everything included.

We keep the range deliberately small: two mounting kits we manufacture ourselves, each complete out of the box and tested against salt spray, UV and wind uplift.

Z brackets for solar panels — HULKNPE kit of 16 aluminum brackets with stainless bolts, washers, flange nuts and self-tapping screws

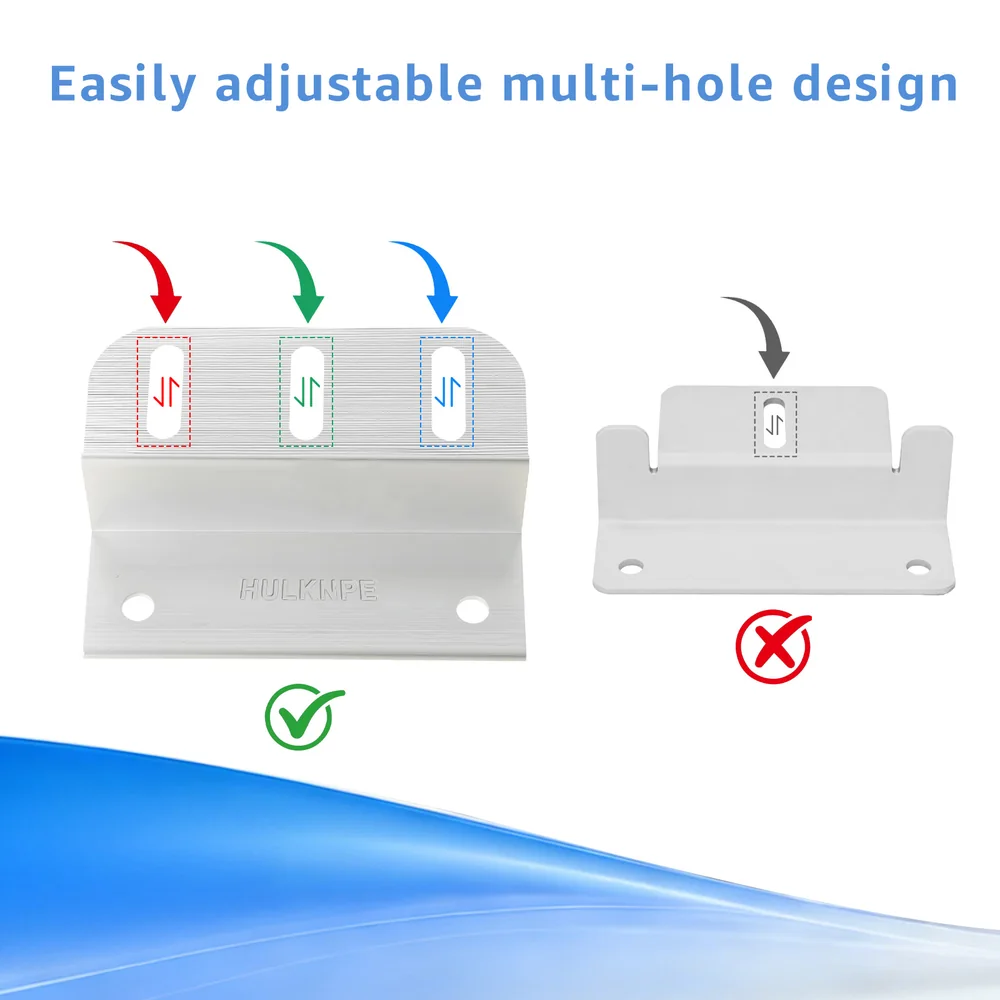

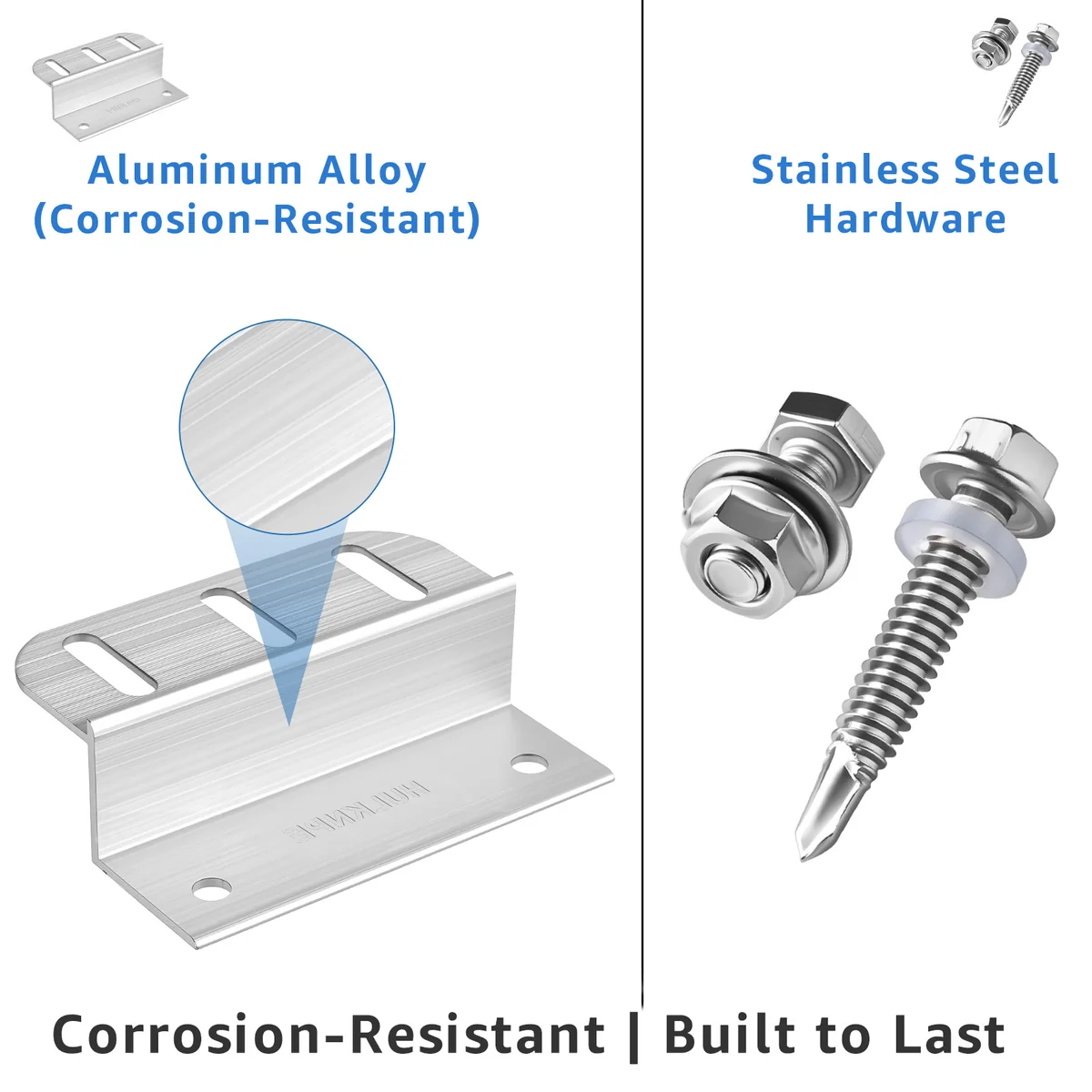

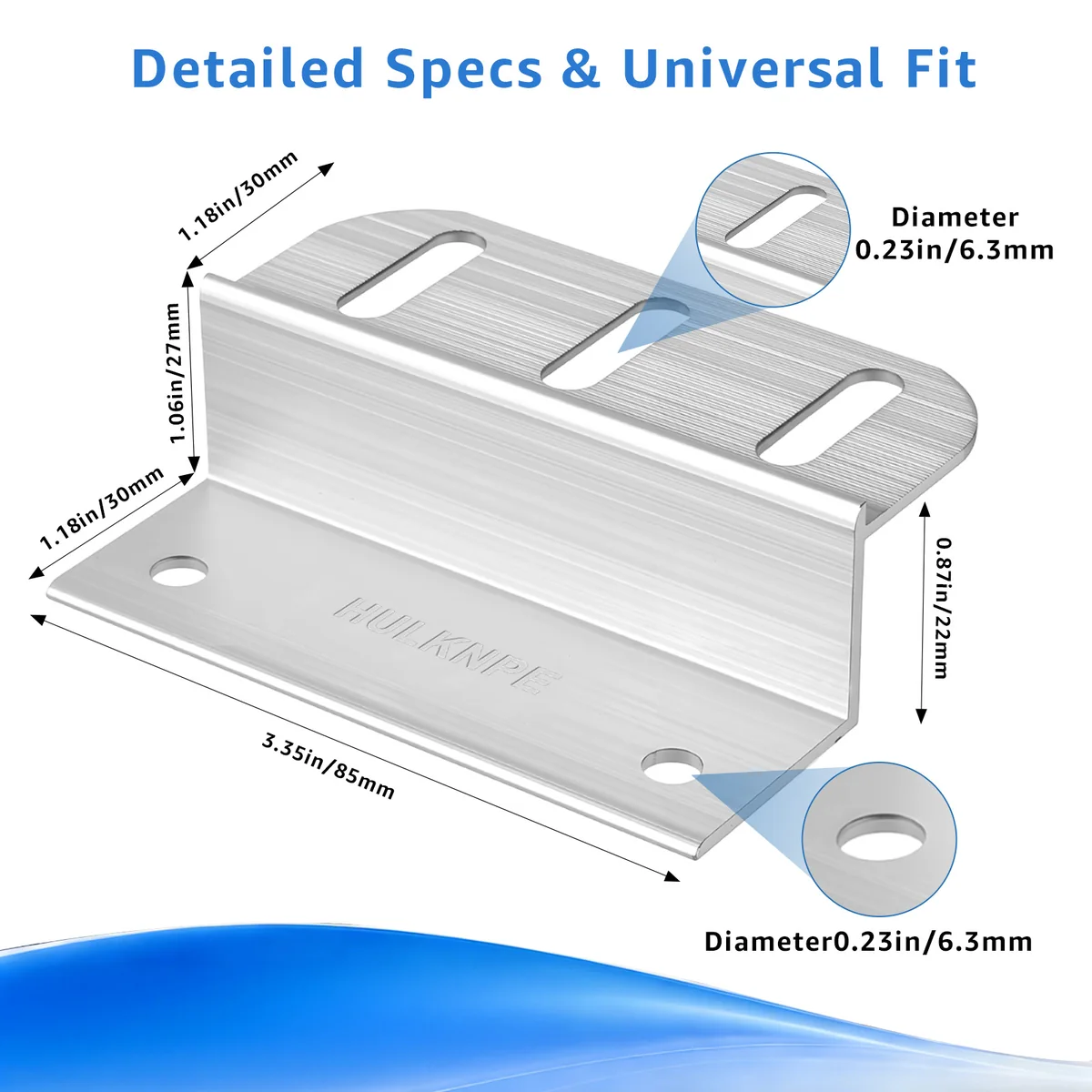

Z bracket dimensions — 3.35 in / 85 mm length, 1.18 in / 30 mm flanges, 1.06 in / 27 mm web, 6.3 mm slot and hole diameters Adjustable multi-slot design on the HULKNPE Z bracket Aluminum alloy bracket and stainless steel hardware — corrosion resistant
Best Seller · Corner & Side Mounting

Solar Panel Z Brackets

The classic low-profile solution for bonding solar panels to flat surfaces. The Z shape creates an air gap under the panel — cooling it in summer heat and letting rain wash debris away from the roof surface.

  • ✓ 16-bracket kit — 85 mm (3.35″) long flanges, 27 mm (1.06″) web height
  • ✓ Multi-slot design: three mounting slots let you dodge obstacles and level uneven surfaces
  • ✓ 6.3 mm (0.23″) bolt holes suit standard M6 hardware
  • ✓ Aluminum alloy body with stainless steel bolts, washers, flange nuts and self-tapping screws
  • ✓ Trusted on shingle rooftops, yacht decks and RV roofs
Buy on Amazon Ask for project pricing
Best Seller · Complete Mounting Kit

U30 Solar Panel Mounting Kit — Short Rail System for 4 Panels

A full mounting system for one row of four solar panels. Ten 4.72″ mini rails carry self-adhesive EPDM pads and distribute the load across the roof, while height-adjustable mid and end clamps lock every panel frame from 1.18″ to 1.38″. Open the box, follow the manual, done.

  • ✓ Aluminum alloy rails and clamps, 304 stainless clamp screws (M8), 410 stainless self-drilling screws
  • ✓ EPDM rubber pads seal the roof and stop water infiltration
  • ✓ Pre-drilled 2-screw rails for a faster, more stable install
  • ✓ Suits panels from 100 W up to 500 W
  • ✓ Flat and pitched roofs: brick, asphalt shingle, standing seam and flat tile
10 × mounting rails 10 × EPDM pads 6 × mid clamps 4 × end clamps 20 × self-drilling screws M6 Allen key
Buy on Amazon Ask for project pricing
Solar panel mounting rail kit — HULKNPE U30 contents: 10 rails with EPDM pads, 6 mid clamps, 4 end clamps, 20 self-drilling screws, M6 Allen key

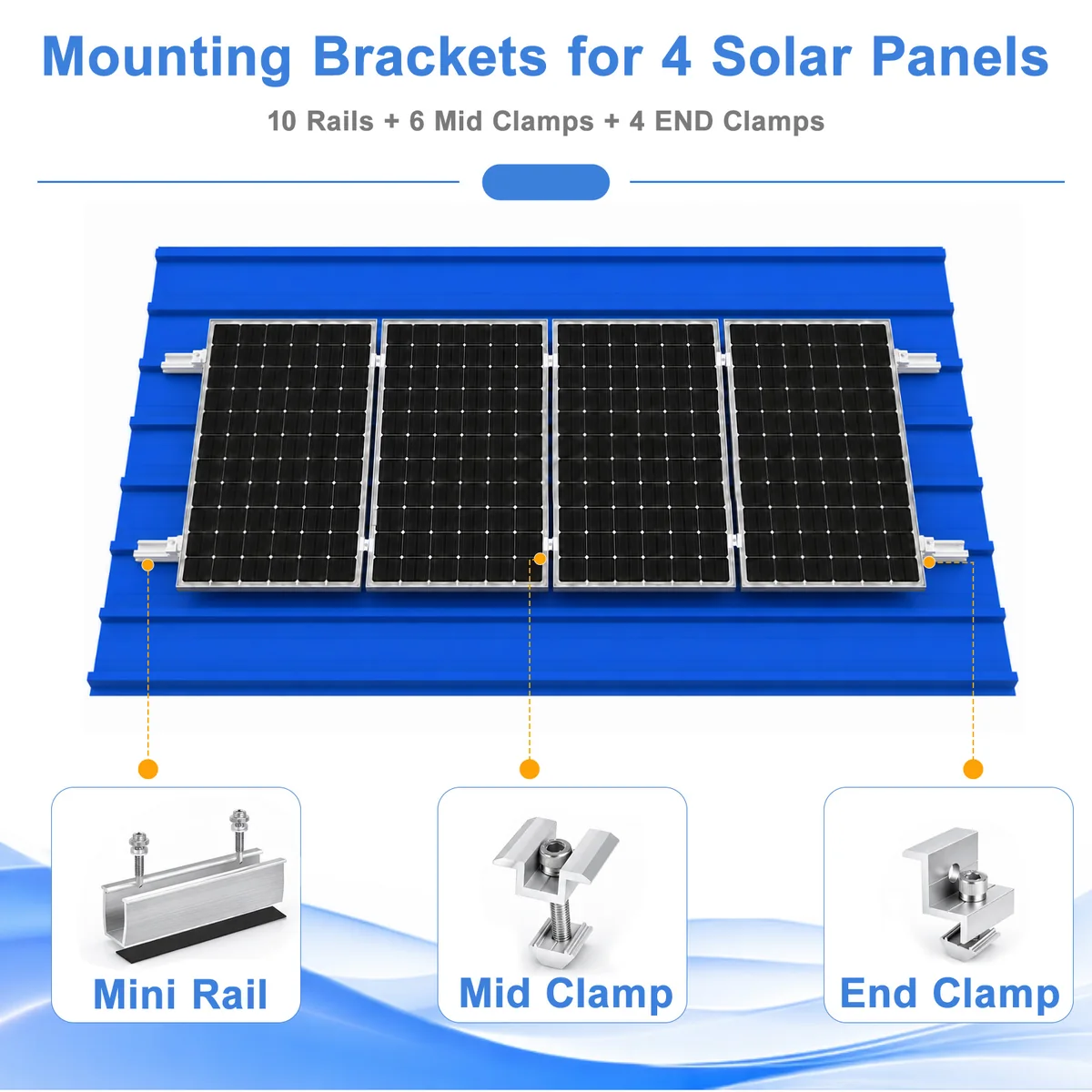

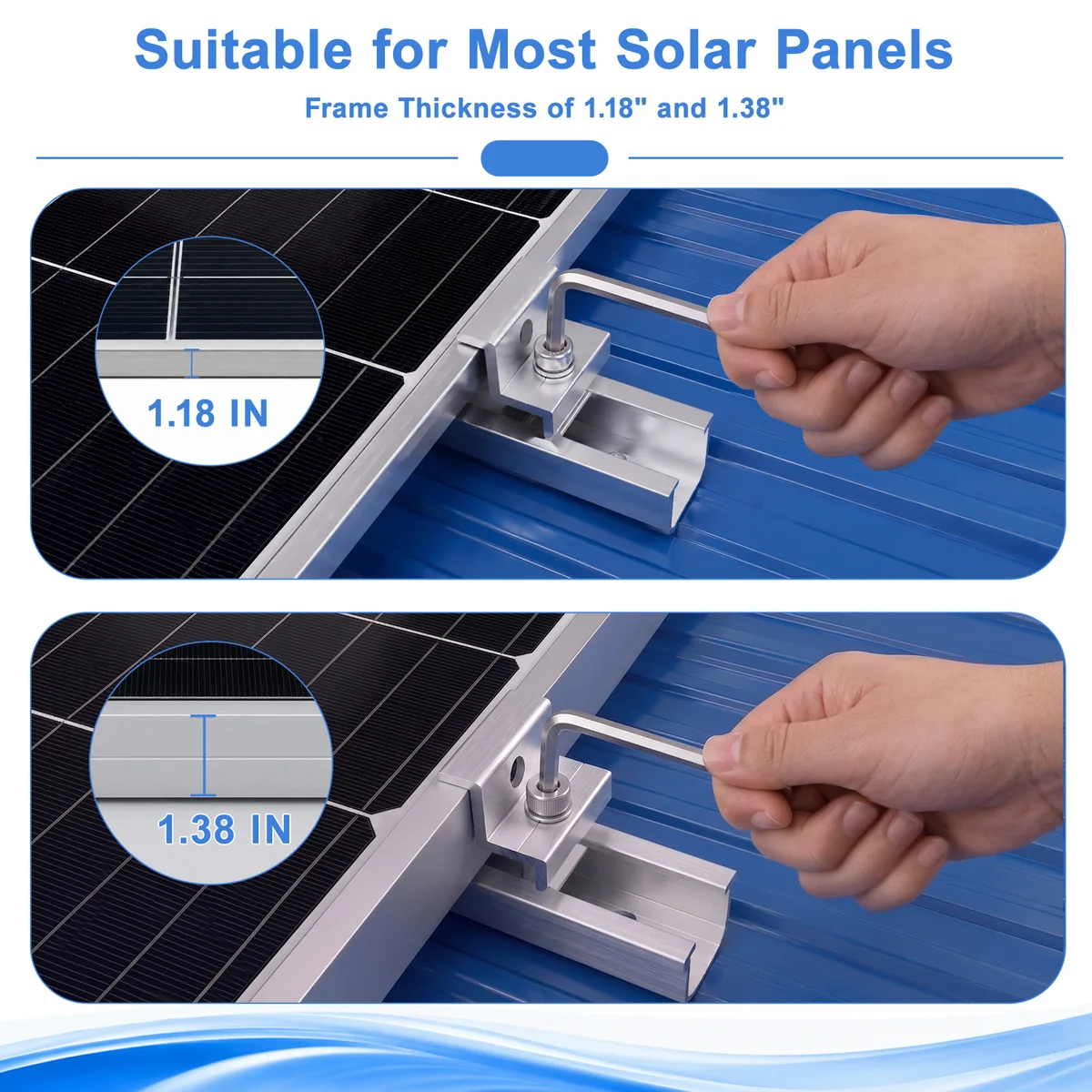

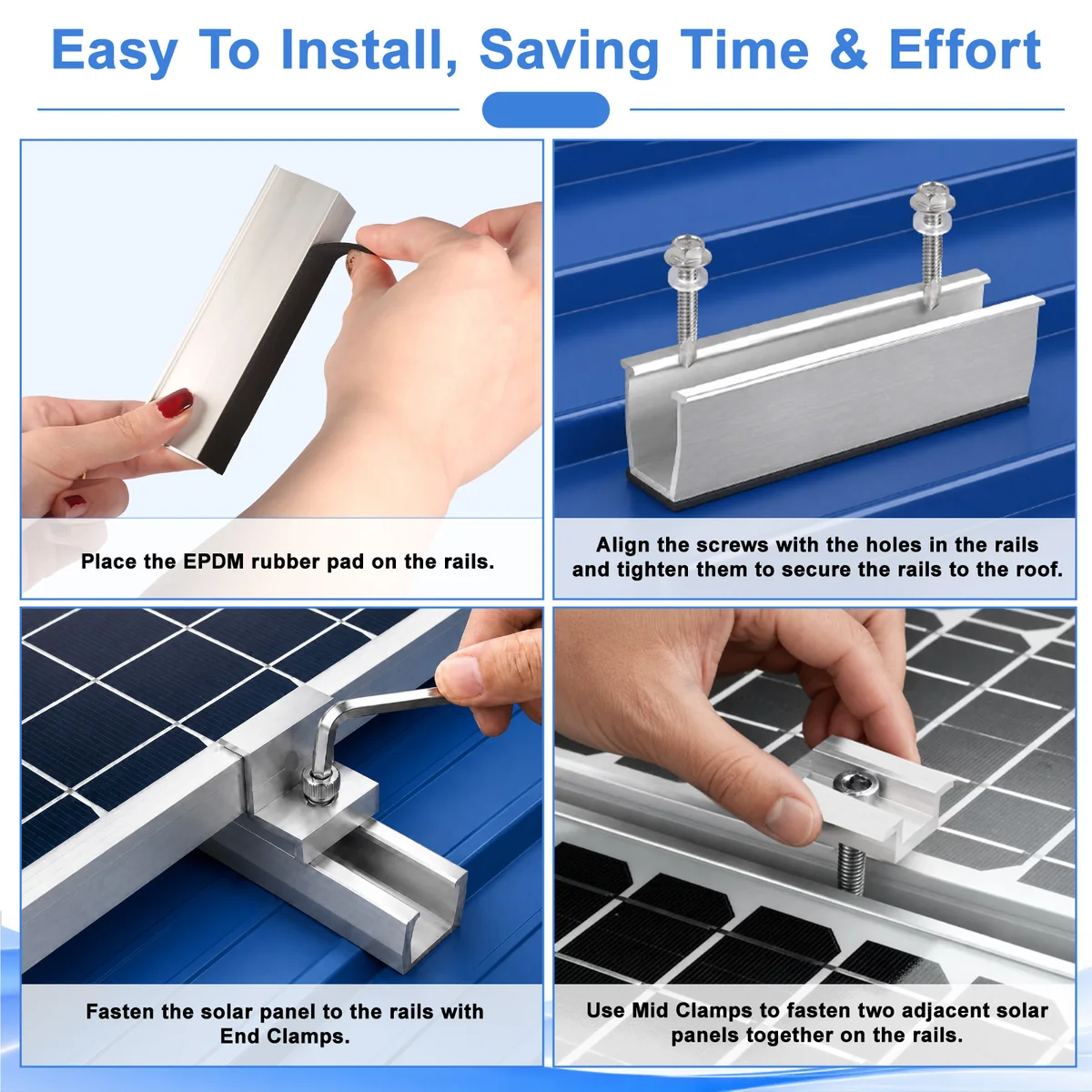

Four solar panels mounted side by side with U30 mounting rails, mid clamps and end clamps U30 rail kit installation in four steps — EPDM pad, rail fixing, end clamps, mid clamps U30 clamps adjusting to 1.18 inch and 1.38 inch solar panel frame thickness
Specifications

At a glance

ProductZ Brackets for Solar Panels (16-pc mounting set)U30 Short Rail Kit
Contents16 × Z brackets, 16 × M6×16 mm hex bolts, 16 × M6 flat washers, 16 × M6 flange nuts, 32 × ST5.5×32 mm self-tapping screws with washers10 × 4.72″ mounting rails, 10 × self-adhesive EPDM pads, 6 × mid clamp sets, 4 × end clamp sets, 20 × self-drilling screws, 1 × M6 Allen key, manual
Key dimensions85 mm (3.35″) flange length · 30 mm (1.18″) flange width · 27 mm (1.06″) web height · 22 mm (0.87″) lower flange · 6.3 mm (0.23″) slots and holesRail 4.72″ (120 mm) long · 1.57″ (40 mm) rail width · clamp range 1.18″ – 1.38″ (30–35 mm)
MaterialAluminum alloy bracket + stainless steel hardwareAluminum alloy rail and clamps · 304 stainless M8 clamp screws · 410 stainless self-drilling screws · EPDM rubber pads
Panel compatibilityMost framed PV modules, 6.3 mm bolt holesFrames 1.18″ – 1.38″; panels 100 W – 500 W
ConfigurationCorner / side mounting, flat surfaces4 panels side by side, one row (10 rails + 6 mid + 4 end clamps)
Roof typesRV, yacht deck, shed, flat home roofsFlat and pitched roofs — brick, asphalt shingle, standing seam, flat tile
InstallationDIY — pre-drilled, multi-slot for obstaclesDIY — EPDM pads, pre-drilled rails, Allen key included
Corrosion resistanceAluminum alloy + stainless steel, rustproofAluminum alloy + 304/410 stainless, rustproof
Where to buyAmazon — B0FPFMY38XAmazon — B0H1M2HS6B

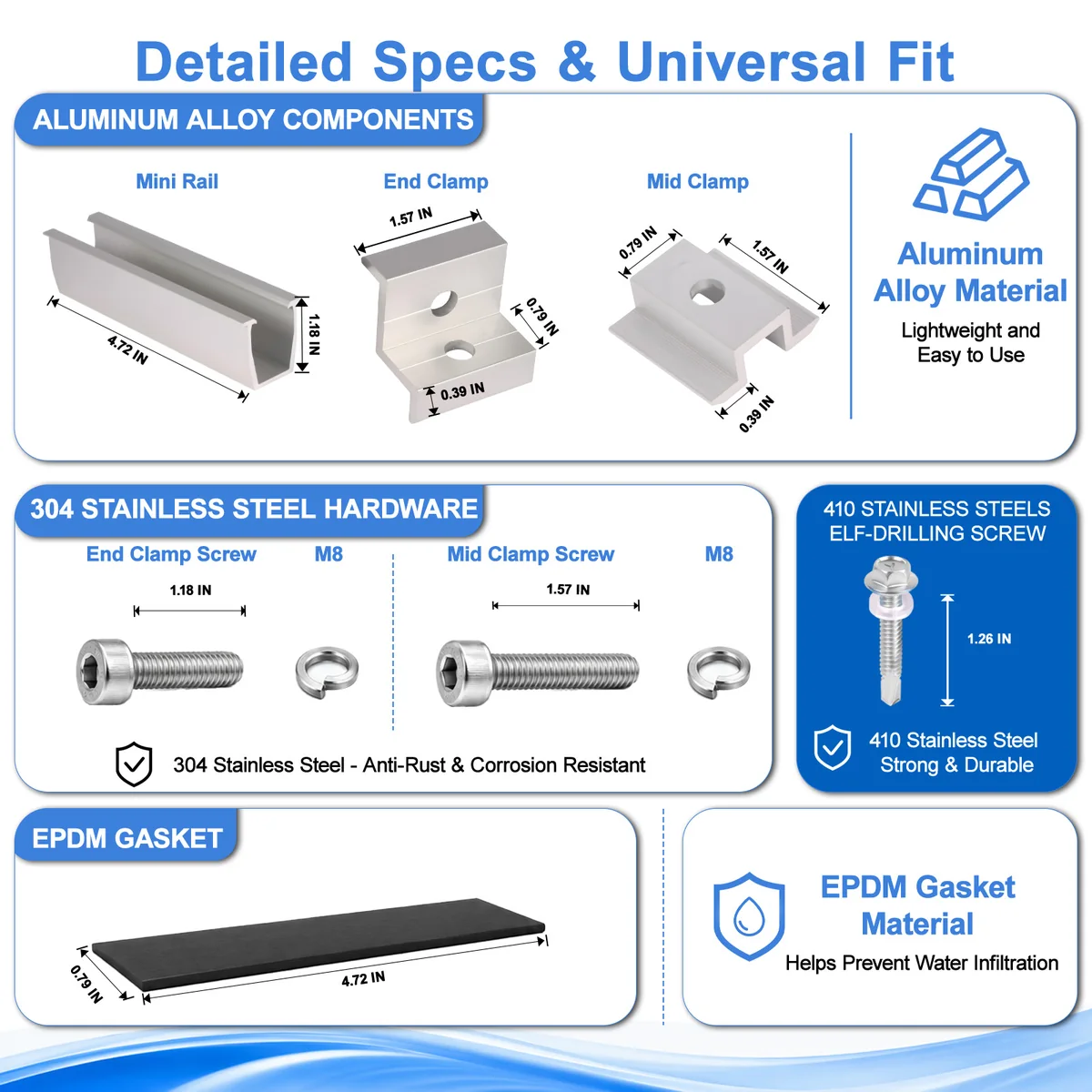

U30 kit technical specifications — mini rail, end clamp and mid clamp dimensions, 304 stainless steel hardware and EPDM gasket
U30 component specsEvery dimension, material grade and gasket spec — measured, not estimated.

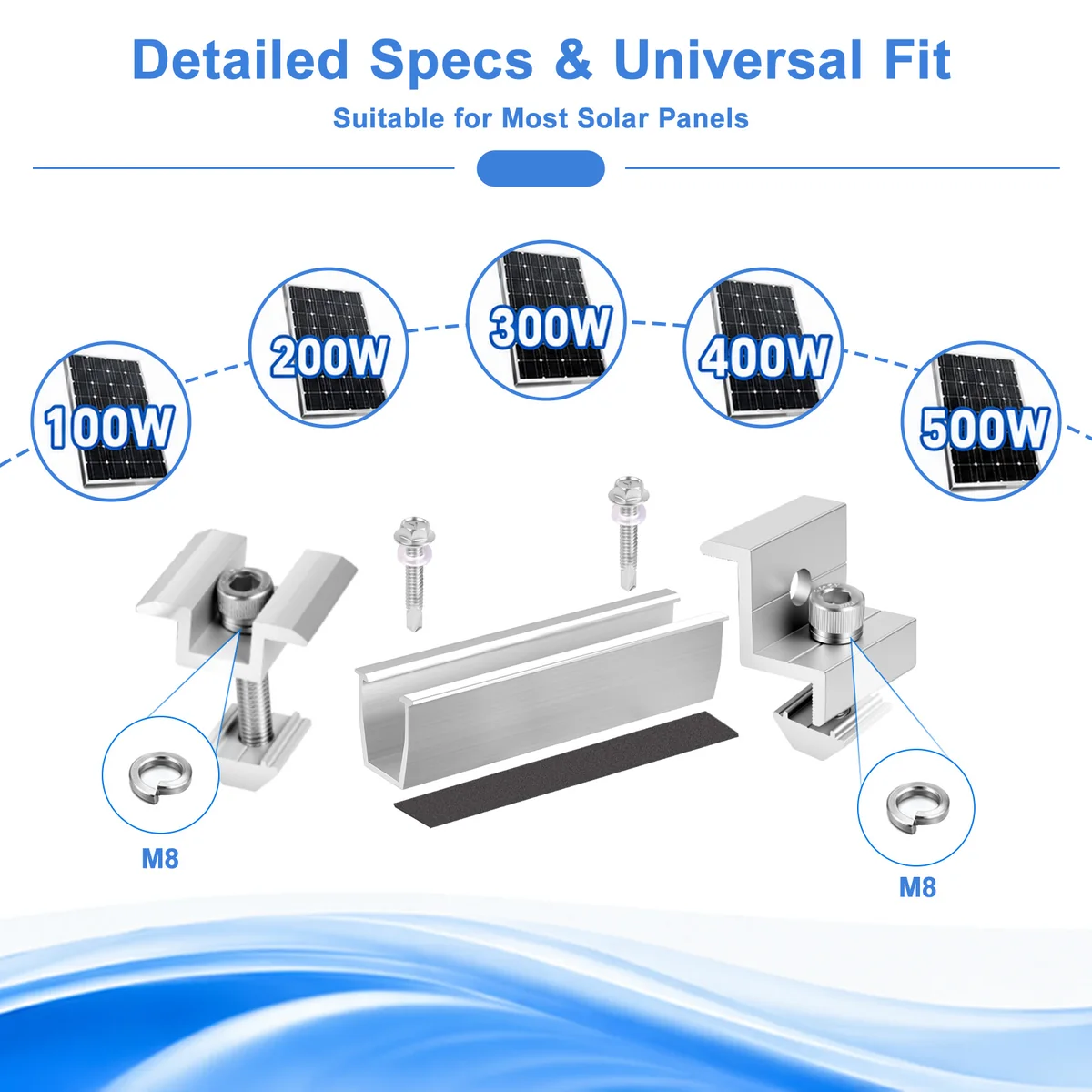

U30 mounting kit suitable for 100W to 500W solar panels
Works across panel sizesOne kit covers 100 W to 500 W modules with M8 hardware throughout.
Under the Clamp

Look closely at where the panel meets the rail

The clamps are the parts that actually hold your investment down — so we photograph them up close, not from three metres away.

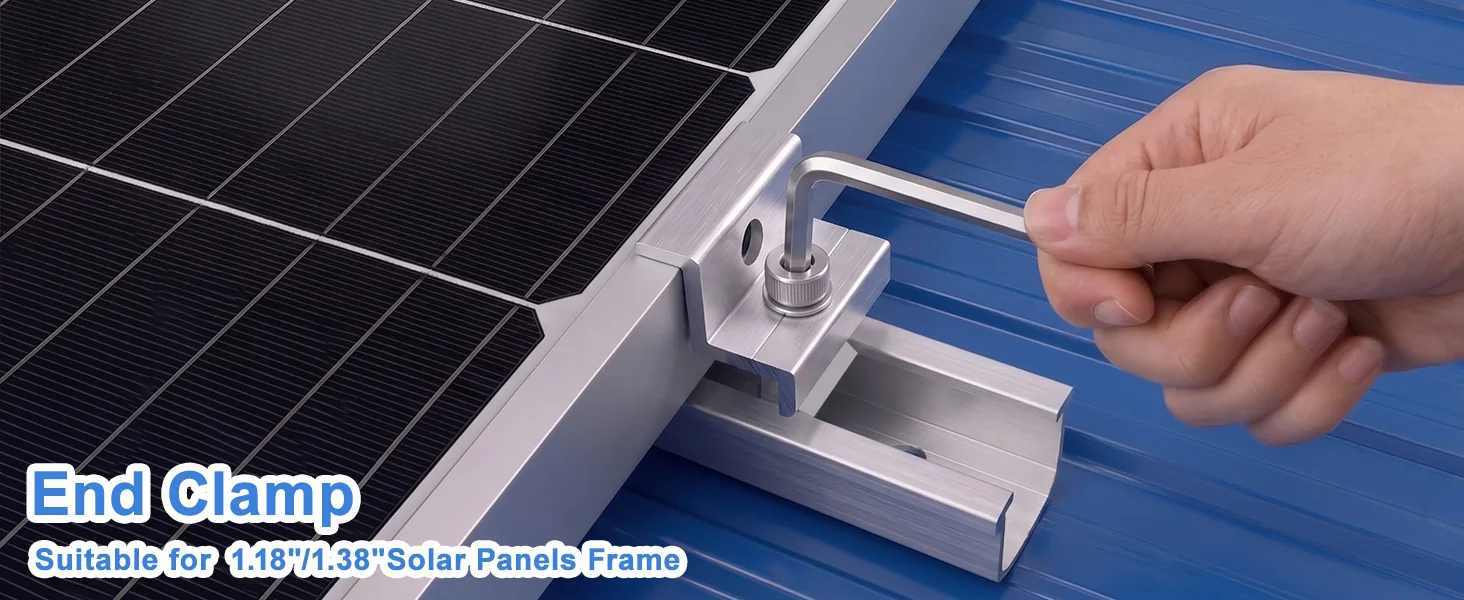

U30 end clamp tightened onto a solar panel frame with the included Allen key
End clampsHeight-adjustable, suitable for 1.18″/1.38″ frames, tightened with the supplied M6 Allen key.

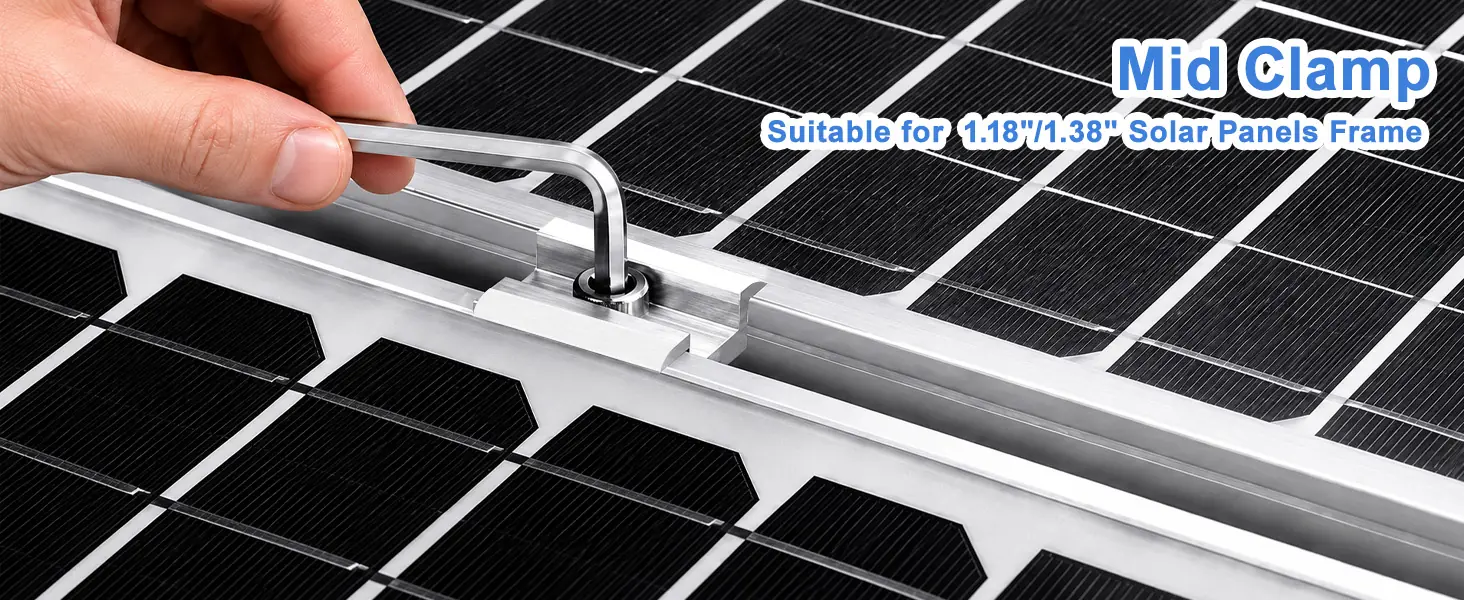

U30 mid clamp joining two adjacent solar panels on a rail
Mid clampsJoin two adjacent panels on the same rail — 6 sets per kit for a 4-panel row.
Real-World Installations

Built for the awkward spots

Vents, pipes, roof curves and tight corners — the multi-slot design lets you shift the fixing point instead of forcing the bracket.

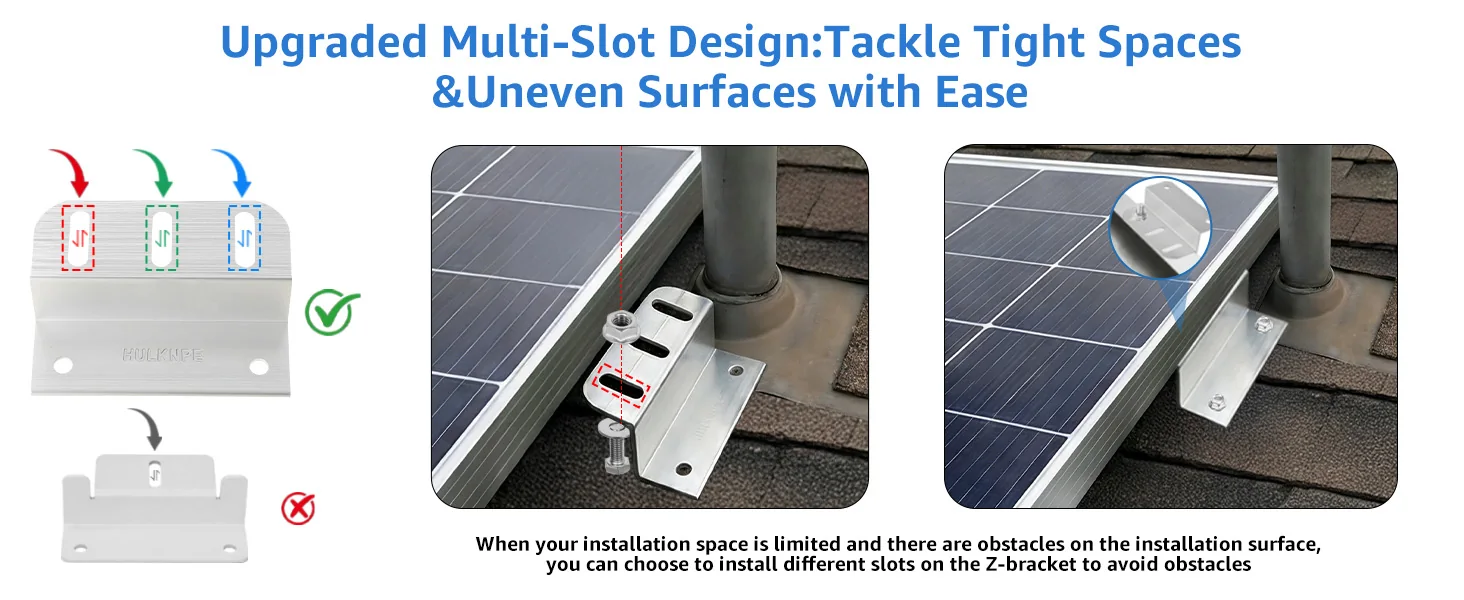

HULKNPE Z bracket installed beside a roof vent, using an alternative slot to avoid the obstacle
Tight spaces & obstaclesInstall through a different slot to clear pipes, vents and ridges without extra drilling.

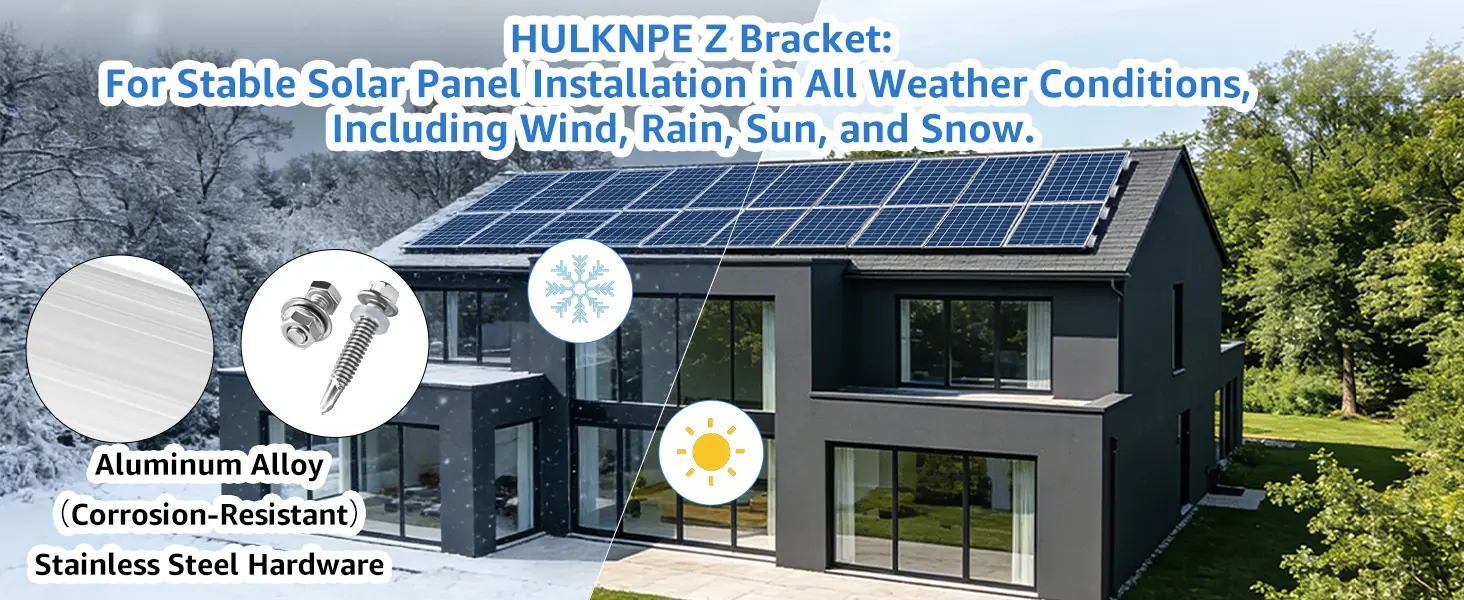

HULKNPE Z brackets holding solar panels through wind, rain, sun and snow
Wind, rain, sun and snowAluminum alloy and stainless steel hardware keep the array stable in every season.
DIY Installation

Four steps, one afternoon

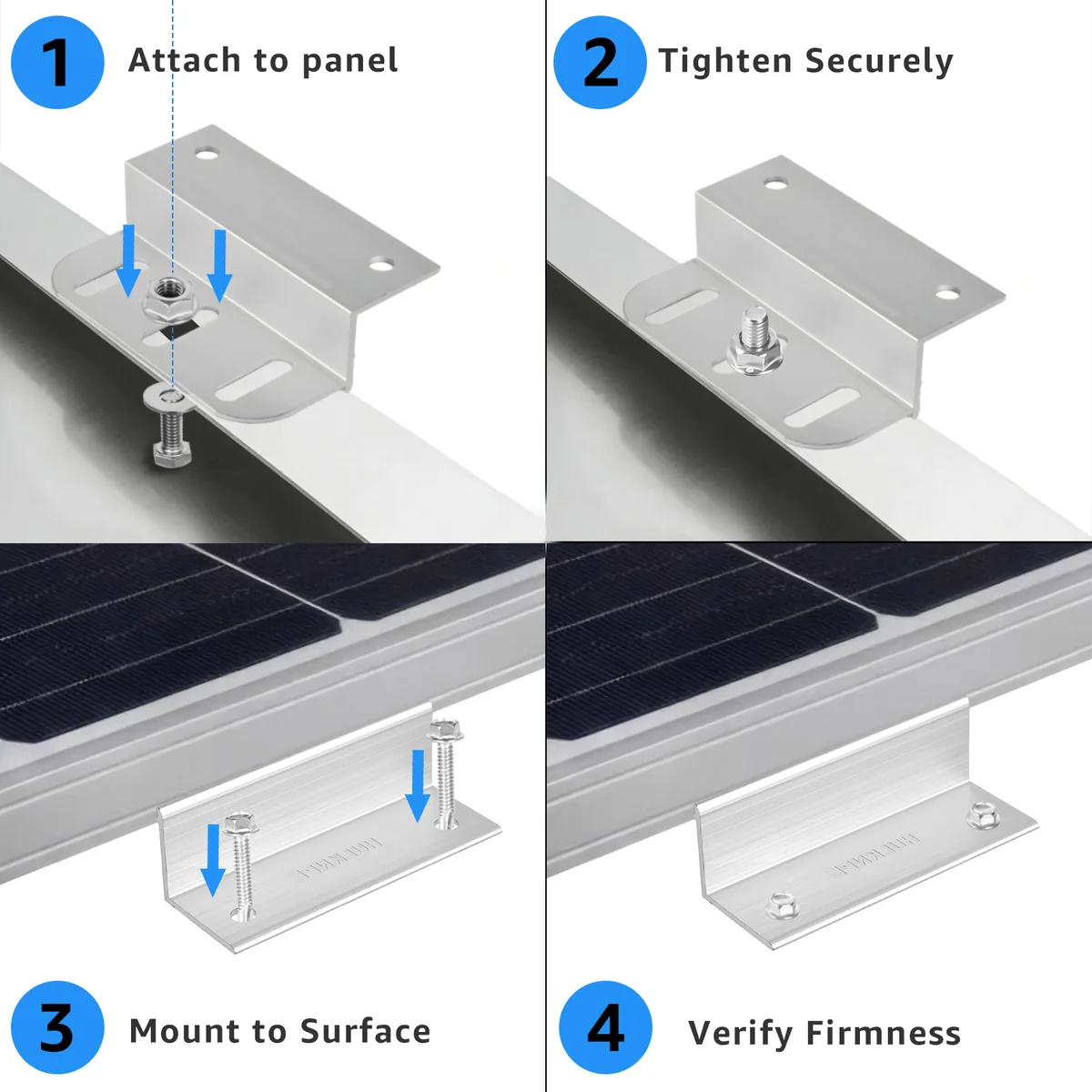

HULKNPE Z bracket installation in four steps: attach to panel, tighten securely, mount to surface, verify firmness
Illustrated Z bracket install1 — attach to panel · 2 — tighten securely · 3 — mount to surface · 4 — verify firmness.

Plan the layout

Position panels on the roof, mark rail or bracket lines, check frame measurements against the 1.18″–1.38″ range.

Fix rails / brackets

Attach Z brackets or U30 rails to the roof with the supplied screws. Seal penetrations with appropriate roofing sealant.

Set the panels

Lay panels into the row. Mid clamps go between panels, end clamps at both ends of the array.

Clamp & torque

Tighten all hardware until snug, then re-check after the first week of use.
